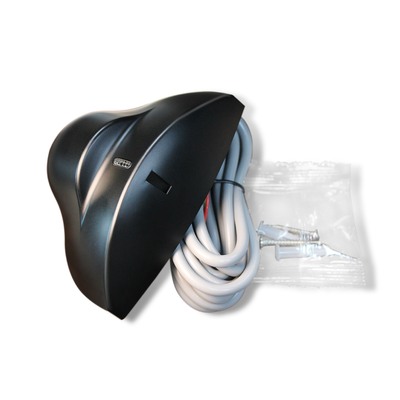

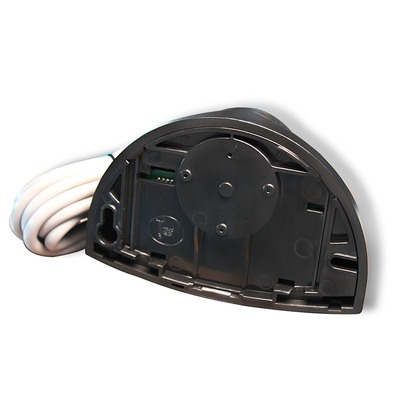

Sliding Glass Door Sensor 24.125GHz | Planar Antenna | Blinder-Free Detection

Nom De Marque:	JUTAI
Numéro De Modèle:	RD24 à 4
MOQ:	50 ensembles
Prix:	4-6 USD according to order quantity
Détails De L'emballage:	CARTON
Conditions De Paiement:	T/T, paypal, alipay, Western Union

Les informations détaillées

Description de produit

Les informations détaillées

Lieu d'origine:

SHENZHEN CHINE

Certification:

Technologie:

Radar doppler micro-ondes

Fréquence de l'émetteur:

24.125 GHz

Puissance rayonnée de l'émetteur:

<20 dBm PIRE

Densité de puissance de l'émetteur:

≤5mW/cm

Hauteur de montage maximale:

Angles d'inclinaison:

0°~90° vertical ; -30°~+30° latéral

Champ de détection (montage 2,2 m):

4 m (L) × 2 m (P)

Mode de détection:

Détection de mouvement

Vitesse minimale détectable:

5 cm/s (axe du capteur)

Tension d'alimentation:

12-24 V CA ±10 % ; 12-24 V CC +30 % / -10 %

Fréquence de canalisations:

50-60Hz

Consommation d'énergie:

≤2W(VA)

Mode de sortie:

Sortie du tube de commutation

Temps de sortie du signal:

1,5 s de maintien

Tension de contact maximale:

42 V CA/CC

Courant de contact maximum:

1A (résistif)

Puissance de changement maximum:

30 W (CC) / 60 VA (CA)

Plage de température de fonctionnement:

-20 ℃ ~ + 55 ℃

Degré de protection:

Conformité aux normes:

R&TTE 1999/5/CE ; CEM 89/336/CEE

Matériel:

Couleur du boîtier:

Noir/Argent

Dimensions (W×H×D):

120 mm × 80 mm × 50 mm

Poids net:

0.215kg

Longueur du câble:

2,2 m

Capacité d'approvisionnement:

5000 pièces par mois

Mettre en évidence:

sliding glass door motion sensor

24.125GHz microwave sensor

blinder-free planar antenna sensor

Description de produit

Sliding Glass Door Sensor 24.125GHz | Planar Antenna | Blinder-Free Detection

This 24.125GHz Sliding Glass Door Sensor is a precision-engineered motion detection solution tailored for sliding glass door systems, boasting a high-performance planar antenna and advanced blinder-free detection for seamless, reliable operation in commercial and residential entryways. Tuned to the 24.125GHz microwave band, the sensor’s integrated planar antenna is designed for wide, focused coverage, creating a tailored detection field that aligns perfectly with the movement path of sliding glass doors—eliminating blind spots and ensuring accurate capture of human motion from all typical entry angles, even for large double sliding glass door setups. What sets this sensor apart is its blinder-free detection technology, which filters out false triggers from glass reflections, ambient light, and minor environmental disturbances, preventing the sensor from being "blinded" by common sliding glass door surroundings and ensuring only intentional motion initiates a response.

Optimized for sliding glass door use, the sensor delivers consistent performance with a minimum detectable speed of 5cm/s, matching the natural movement of people approaching entryways, and its compact ABS housing mounts discreetly on door frames or adjacent walls without compromising the sleek aesthetic of glass door installations. Built to withstand daily use, it features an IP54 dustproof and waterproof rating, operating stably in temperatures from -20℃ to +55℃ for year-round reliability in both indoor and covered outdoor sliding glass door setups. Compatible with 12-24V AC/DC wide voltage and low power consumption of ≤2W, it integrates effortlessly into existing door control systems, with a clear LED status indicator for easy installation and quick troubleshooting. Ideal for malls, offices, and modern homes, this sensor merges 24.125GHz precision, planar antenna coverage, and blinder-free detection for a hassle-free sliding glass door motion sensing experience.

Sliding Glass Door Sensor 24.125GHz | Planar Antenna | Blinder-Free Detection 0

Product Highlights

24.125GHz mainstream microwave frequency for stable motion detection (≥5cm/s)
Wide detection field: 4m(W)*2m(D) at 2.2m mounting height
Flexible angle adjustment: 0°~90° vertical / -30°~+30° lateral tilt
Wide voltage supply: 12-24V AC/DC with low power consumption (≤2W)
IP54 protection & -20℃~+55℃ working temperature for indoor/outdoor semi-enclosed use
Easy installation & adjustment with compact size, sensitivity potentiometer, and clear LED status prompt
Reliable output: 1.5s signal hold, 42V AC/DC max contact voltage, 1A resistive current

Technical Specifications

Parameter	Specification
Technology	Microwave Doppler Radar
Transmitter Frequency	24.125GHz
Transmitter Radiated Power	<20 dBm EIRP
Transmitter Power Density	≤5mW/cm
Maximum Mounting Height	3m
Tilt Angles	0°~90° vertical; -30°~+30° lateral
Detection Field (2.2m mounting)	4m(W)*2m(D)
Detection Mode	Motion detection
Minimum Detectable Speed	5cm/s (sensor axis)
Supply Voltage	12-24V AC ±10%; 12-24V DC +30% / -10%
Mains Frequency	50-60Hz
Power Consumption	≤2W(VA)
Output Mode	Switch tube output
Signal Output Time	1.5s hold
Max Contact Voltage	42V AC/DC
Max Contact Current	1A (resistive)
Max Switching Power	30W(DC) / 60VA(AC)
Working Temperature Range	-20℃ ~ +55℃
Degree of Protection	IP54
Norm Conformity	R&TTE 1999/5/EC; EMC 89/336/EEC
Material	ABS
Housing Color	Black/Silver
Dimensions (WHD)	120mm80mm50mm
Net Weight	0.215kg
Cable Length	2.2m

Installation & Adjustment Guide

The sensor's performance is closely related to correct installation and adjustment. Simple operation with no professional tools required:

Mounting Requirements

Avoid vibration positions, neon lamp proximity and sensor occlusion; do not touch internal electronic parts during installation.

Sensitivity Adjustment

Rotate the sensitivity potentiometer gently and slowly; the sensitivity value determines the size of the detection field (adjust to 1/2 or higher for short detection distance).

Angle Adjustment

Planar antenna lateral angle = detection field position; vertical angle = detection field depth; set microwave module angle to ≥45° for optimal detection.

Status Check

LED flashes after power-on (normal standby); LED lights up continuously when a moving target is detected (detection trigger).

Troubleshooting Guide

Fault Phenomenon	Probable Causes	Corrective Action
Door does not open & LED no light	Sensor power off	Check wiring connection and power supply validity
Door opens/closes constantly	Sensor detects door vibration/movement; interference source in detection range	Fix the sensor firmly; increase tilt angle/reduce sensitivity; remove interference sources in the detection field
Detection distance is too close	Low sensitivity; microwave module angle <45°; sensor blocked	Adjust sensitivity potentiometer to 1/2 or higher; set module angle to ≥45°; remove occluding objects

Application Scenarios

The RD24-4S is a multi-scenario motion detection sensor with high adaptability, primarily applicable to:

Automatic Door Systems: Sliding doors, swing doors, glass induction doors (commercial buildings, shopping malls, office buildings)
Security & Monitoring: Perimeter security detection, indoor human motion induction (residential, factory, warehouse)
Industrial Automation: Conveyor belt motion detection, equipment start/stop induction (light industry production lines)
Intelligent Building: Smart lighting induction, air conditioning induction (public areas such as corridors and elevators)

Core Technologies

Microwave Doppler Radar Sensor 24.125GHz Radar Sensor Automatic Door Motion Detector Wide Field Detection Sensor IP54 Motion Sensor
