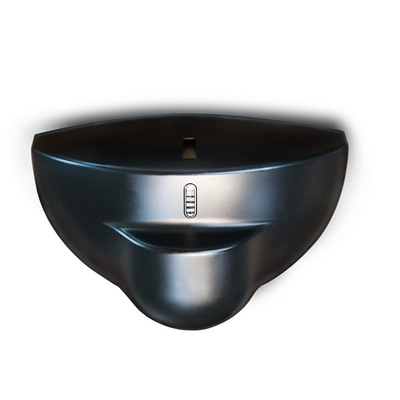

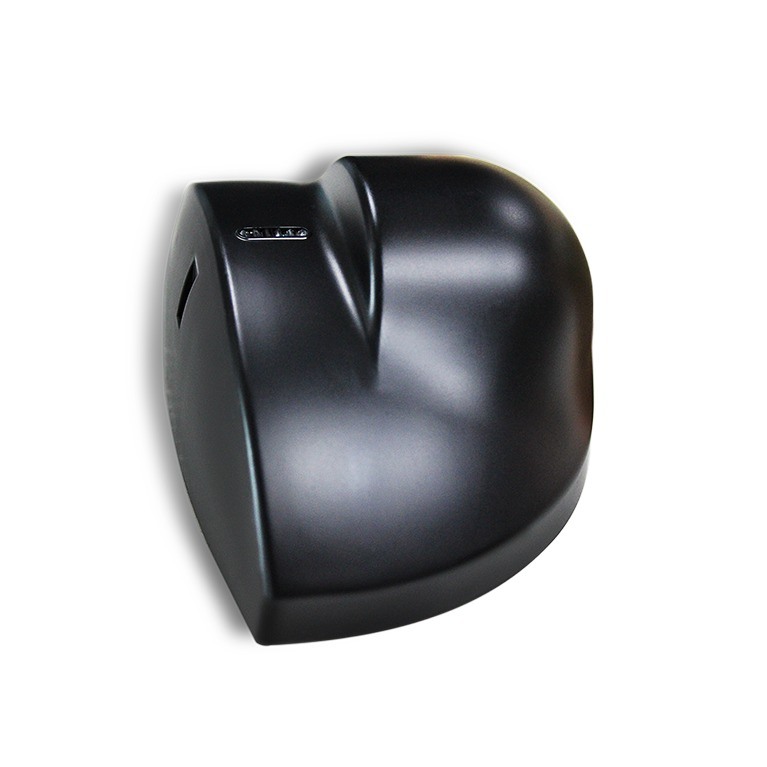

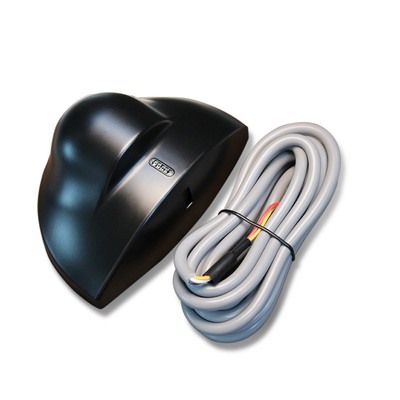

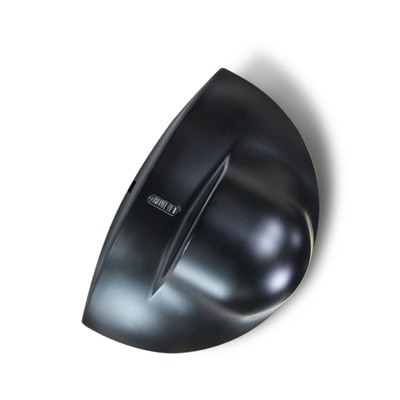

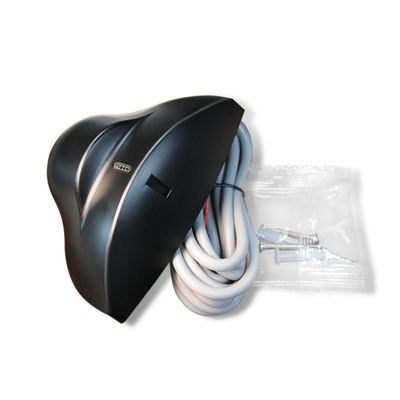

Automatic Door Sensor 24.125GHz | Compact Design | net weight 0.215kg Sensitivity

Nom De Marque:	JUTAI
Numéro De Modèle:	RD24 à 4
MOQ:	50 ensembles
Prix:	4-6 USD according to order quantity
Détails De L'emballage:	CARTON
Conditions De Paiement:	T/T, paypal, alipay, Western Union

Les informations détaillées

Description de produit

Les informations détaillées

Lieu d'origine:

SHENZHEN CHINE

Certification:

Technologie:

Radar doppler micro-ondes

Fréquence de l'émetteur:

24.125 GHz

Puissance rayonnée de l'émetteur:

<20 dBm PIRE

Densité de puissance de l'émetteur:

≤5mW/cm

Hauteur de montage maximale:

Angles d'inclinaison:

0°~90° vertical ; -30°~+30° latéral

Champ de détection (montage 2,2 m):

4 m (L) × 2 m (P)

Mode de détection:

Détection de mouvement

Vitesse minimale détectable:

5 cm/s (axe du capteur)

Tension d'alimentation:

12-24 V CA ±10 % ; 12-24 V CC +30 % / -10 %

Fréquence de canalisations:

50-60Hz

Consommation d'énergie:

≤2W(VA)

Mode de sortie:

Sortie du tube de commutation

Temps de sortie du signal:

1,5 s de maintien

Tension de contact maximale:

42 V CA/CC

Courant de contact maximum:

1A (résistif)

Puissance de changement maximum:

30 W (CC) / 60 VA (CA)

Plage de température de fonctionnement:

-20 ℃ ~ + 55 ℃

Degré de protection:

Conformité aux normes:

R&TTE 1999/5/CE ; CEM 89/336/CEE

Matériel:

Couleur du boîtier:

Noir/Argent

Dimensions (W×H×D):

120 mm × 80 mm × 50 mm

Poids net:

0.215kg

Longueur du câble:

2,2 m

Capacité d'approvisionnement:

5000 pièces par mois

Mettre en évidence:

24.125GHz automatic door sensor

compact microwave motion sensor

lightweight automatic door sensor

Description de produit

Automatic Door Sensor 24.125GHz | Compact Design | net weight 0.215kg Sensitivity

This 24.125GHz Automatic Door Sensor is a streamlined motion detection solution crafted for all automatic door systems, featuring a space-saving compact design, an ultra-light net weight of just 0.215kg, and fully adjustable sensitivity—three key advantages that redefine practicality and adaptability for commercial, office and retail entryways. Tuned to the reliable 24.125GHz microwave Doppler frequency band, it delivers accurate motion sensing for automatic door trigger needs, with a precision sensitivity potentiometer that allows gentle, stepless adjustment to tailor the detection range to your specific space: narrow it for small entryways to avoid false triggers, or widen it for high-traffic areas to ensure full coverage of human movement. The sensor’s compact ABS housing (120mm×80mm×50mm) boasts a sleek, minimal profile that mounts discreetly on door frames, ceilings or adjacent walls, blending seamlessly with any automatic door setup without occupying excess space, while its 0.215kg lightweight build eliminates the need for heavy mounting hardware, supporting quick, stable installation on various surfaces.

Optimized for real-world automatic door use, this sensor detects targets moving at ≥5cm/s with consistent accuracy, avoiding mis-triggers from door vibrations or ambient interference, and pairs its space-saving design with robust performance: it supports 12-24V AC/DC wide voltage supply, features low power consumption of ≤2W for energy-efficient long-term operation, and meets IP54 dustproof and waterproof standards for reliable use in indoor and covered outdoor environments. A clear LED status indicator simplifies quick setup and troubleshooting—flashing on power-on and solid when motion is detected—while the 2.2m pre-wired cable ensures easy wiring with standard automatic door control systems. Compliant with R&TTE and EMC international standards, this 24.125GHz Automatic Door Sensor merges compact, lightweight design with customizable sensitivity, making it a versatile, easy-to-integrate motion detection choice for all automatic door access control needs.

Automatic Door Sensor 24.125GHz | Compact Design | net weight 0.215kg Sensitivity 0

Product Highlights

24.125GHz mainstream microwave frequency for stable motion detection (≥5cm/s)
Wide detection field: 4m(W)*2m(D) at 2.2m mounting height
Flexible angle adjustment: 0°~90° vertical / -30°~+30° lateral tilt
Wide voltage supply: 12-24V AC/DC with low power consumption (≤2W)
IP54 protection & -20℃~+55℃ working temperature for indoor/outdoor semi-enclosed use
Easy installation & adjustment with compact size, sensitivity potentiometer, and clear LED status prompt
Reliable output: 1.5s signal hold, 42V AC/DC max contact voltage, 1A resistive current

Technical Specifications

Parameter	Specification
Technology	Microwave Doppler Radar
Transmitter Frequency	24.125GHz
Transmitter Radiated Power	<20 dBm EIRP
Transmitter Power Density	≤5mW/cm
Maximum Mounting Height	3m
Tilt Angles	0°~90° vertical; -30°~+30° lateral
Detection Field (2.2m mounting)	4m(W)*2m(D)
Detection Mode	Motion detection
Minimum Detectable Speed	5cm/s (sensor axis)
Supply Voltage	12-24V AC ±10%; 12-24V DC +30% / -10%
Mains Frequency	50-60Hz
Power Consumption	≤2W(VA)
Output Mode	Switch tube output
Signal Output Time	1.5s hold
Max Contact Voltage	42V AC/DC
Max Contact Current	1A (resistive)
Max Switching Power	30W(DC) / 60VA(AC)
Working Temperature Range	-20℃ ~ +55℃
Degree of Protection	IP54
Norm Conformity	R&TTE 1999/5/EC; EMC 89/336/EEC
Material	ABS
Housing Color	Black/Silver
Dimensions (WHD)	120mm80mm50mm
Net Weight	0.215kg
Cable Length	2.2m

Installation & Adjustment Guide

The sensor's performance is closely related to correct installation and adjustment. Simple operation with no professional tools required:

Mounting Requirements

Avoid vibration positions, neon lamp proximity and sensor occlusion; do not touch internal electronic parts during installation.

Sensitivity Adjustment

Rotate the sensitivity potentiometer gently and slowly; the sensitivity value determines the size of the detection field (adjust to 1/2 or higher for short detection distance).

Angle Adjustment

Planar antenna lateral angle = detection field position; vertical angle = detection field depth; set microwave module angle to ≥45° for optimal detection.

Status Check

LED flashes after power-on (normal standby); LED lights up continuously when a moving target is detected (detection trigger).

Troubleshooting Guide

Fault Phenomenon	Probable Causes	Corrective Action
Door does not open & LED no light	Sensor power off	Check wiring connection and power supply validity
Door opens/closes constantly	Sensor detects door vibration/movement; interference source in detection range	Fix the sensor firmly; increase tilt angle/reduce sensitivity; remove interference sources in the detection field
Detection distance is too close	Low sensitivity; microwave module angle <45°; sensor blocked	Adjust sensitivity potentiometer to 1/2 or higher; set module angle to ≥45°; remove occluding objects

Application Scenarios

The RD24-4S is a multi-scenario motion detection sensor with high adaptability, primarily applicable to:

Automatic Door Systems: Sliding doors, swing doors, glass induction doors (commercial buildings, shopping malls, office buildings)
Security & Monitoring: Perimeter security detection, indoor human motion induction (residential, factory, warehouse)
Industrial Automation: Conveyor belt motion detection, equipment start/stop induction (light industry production lines)
Intelligent Building: Smart lighting induction, air conditioning induction (public areas such as corridors and elevators)

Core Technologies

Microwave Doppler Radar Sensor 24.125GHz Radar Sensor Automatic Door Motion Detector Wide Field Detection Sensor IP54 Motion Sensor
